AMTECH COMMUNICATION BOX
Controlling the MiR robot
or MiRFleet server via
REST API (PUT, POST)
Communication with MiR robot via Modbus TCP
(Int32, Float32, Boolean).
Five programmable inputs. Possibility to define the command
for logic 1 and 0 independently.
Introducing Amtech Communication Box
FILES
You can download the latest firmware and manuals to help you set up the AMTECH Communication Box.
DataSheet
Quick settings
IP adress: 192.168.1.254
Mask: 255.255.255.0

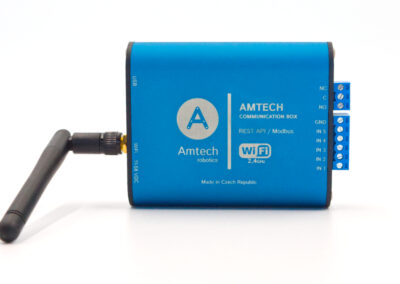

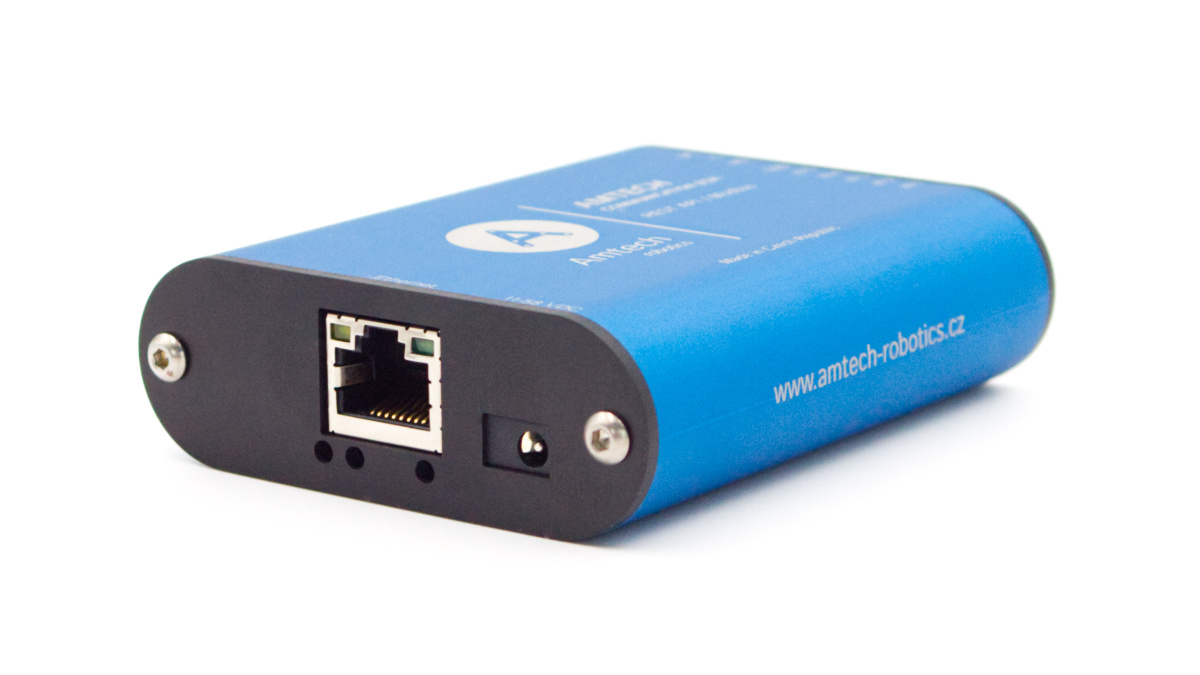

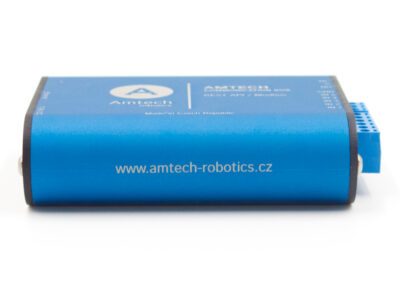

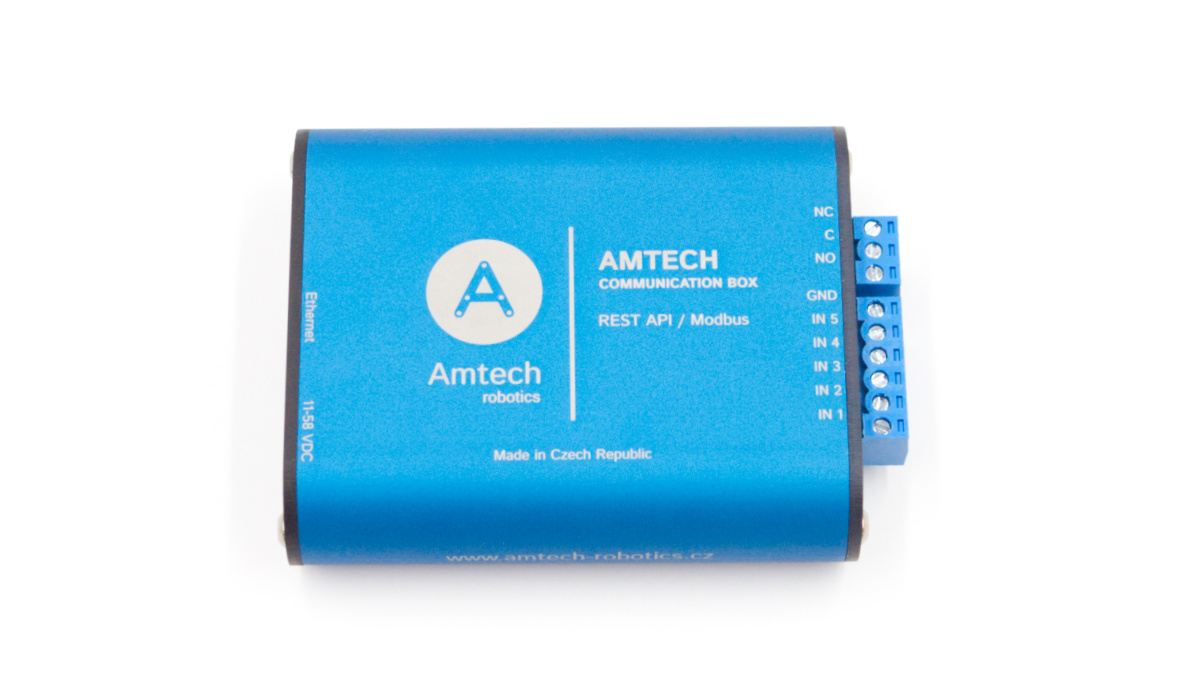

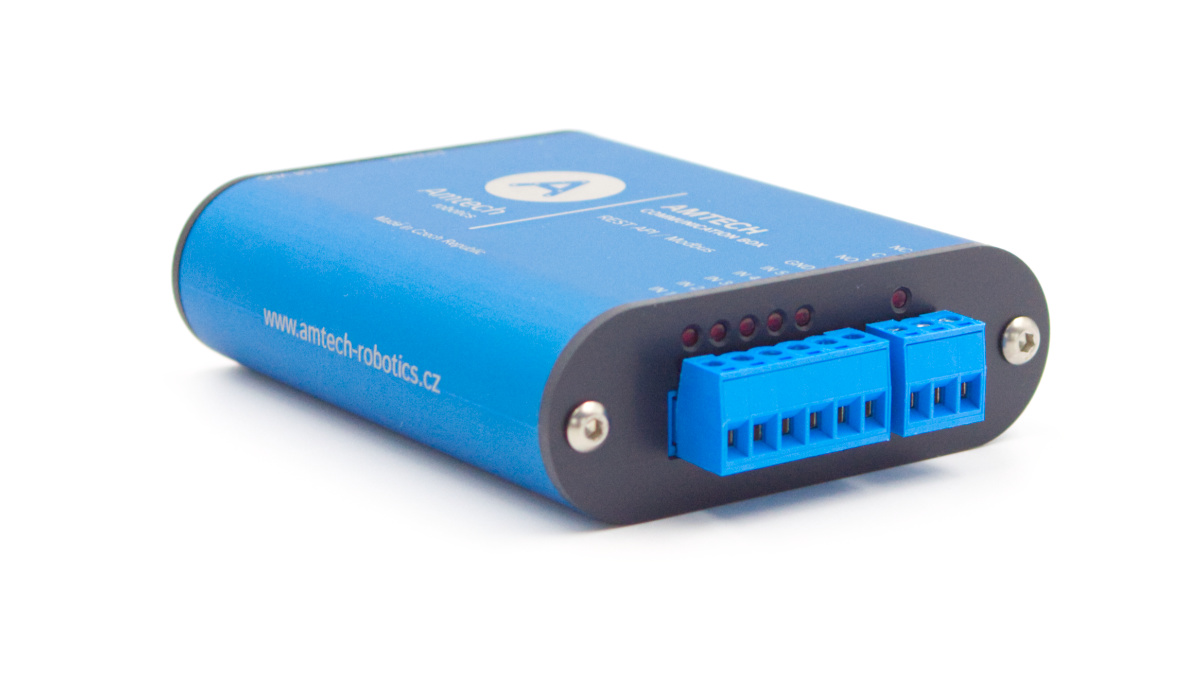

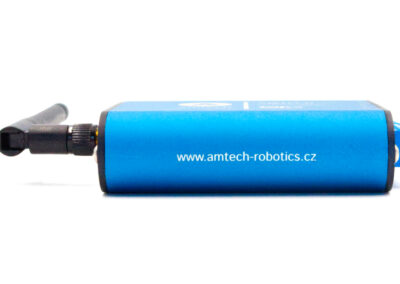

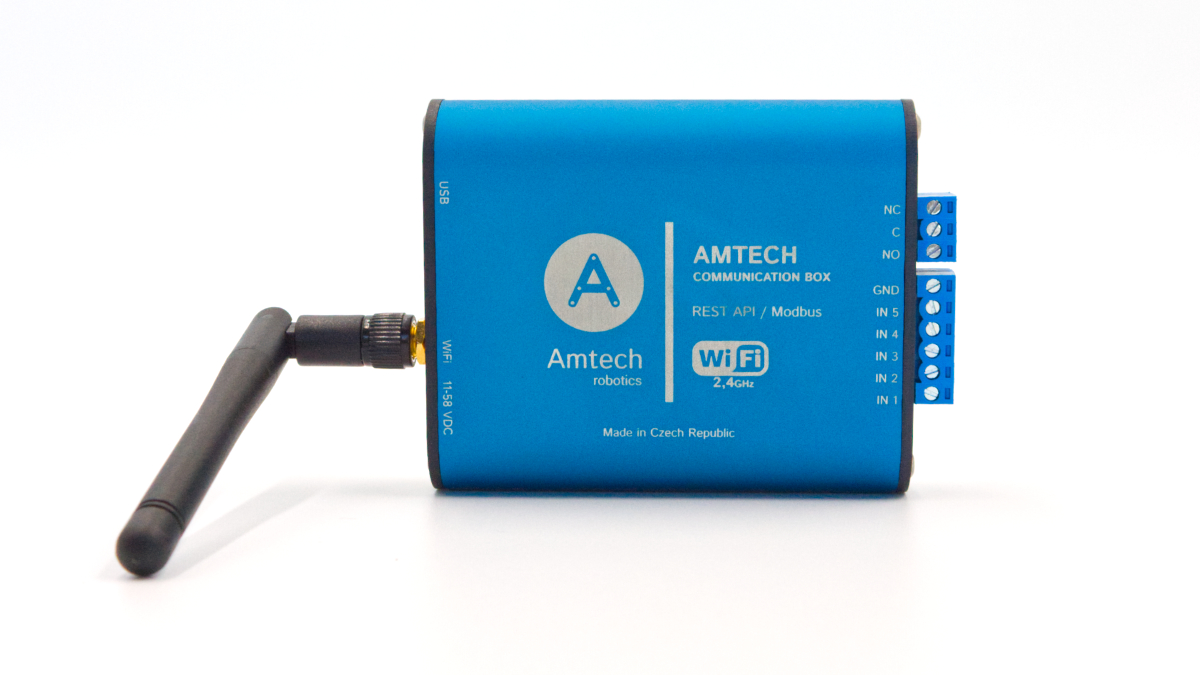

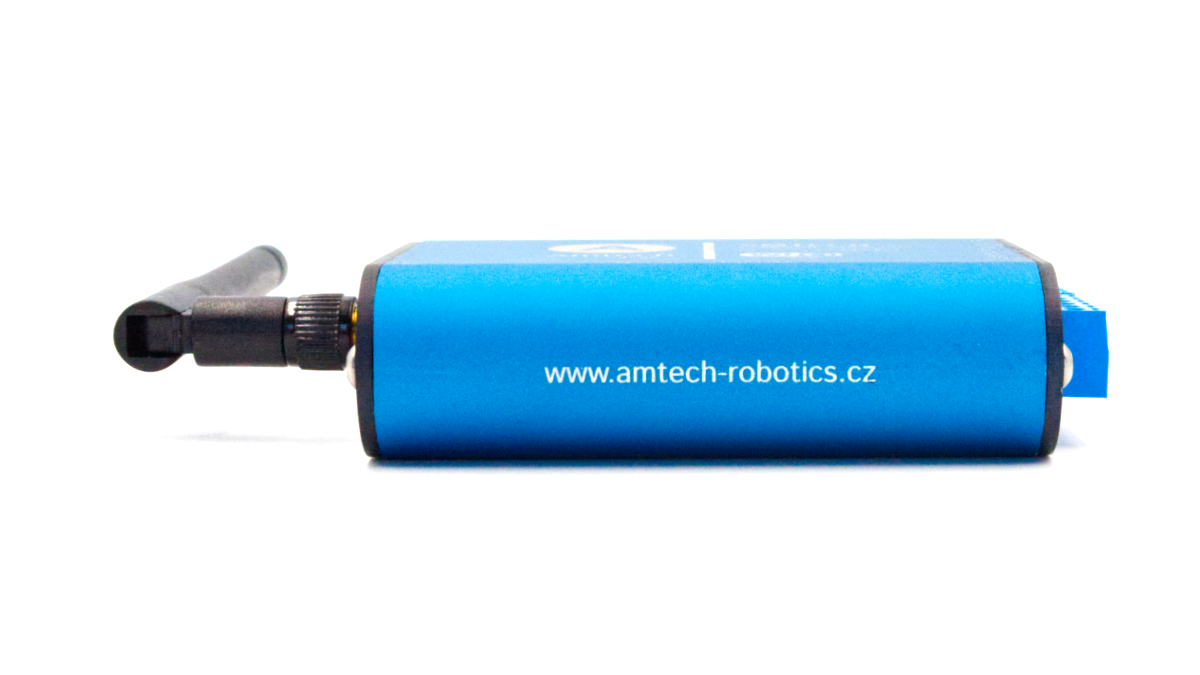

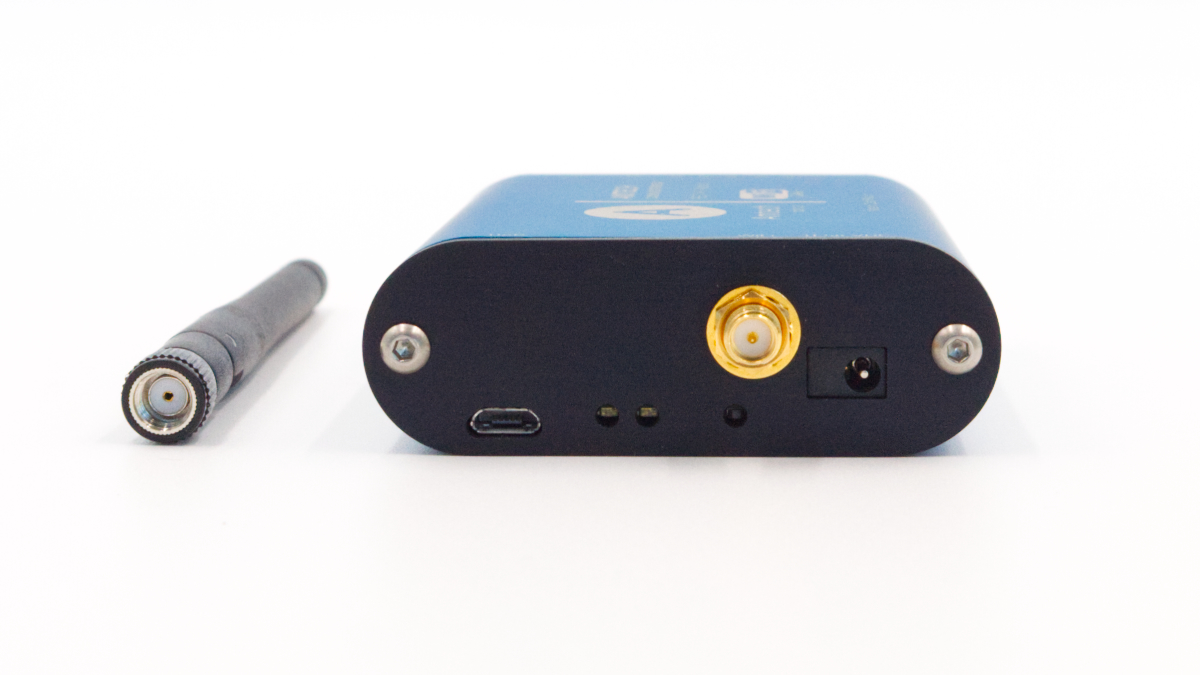

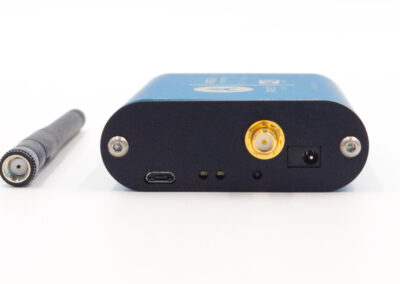

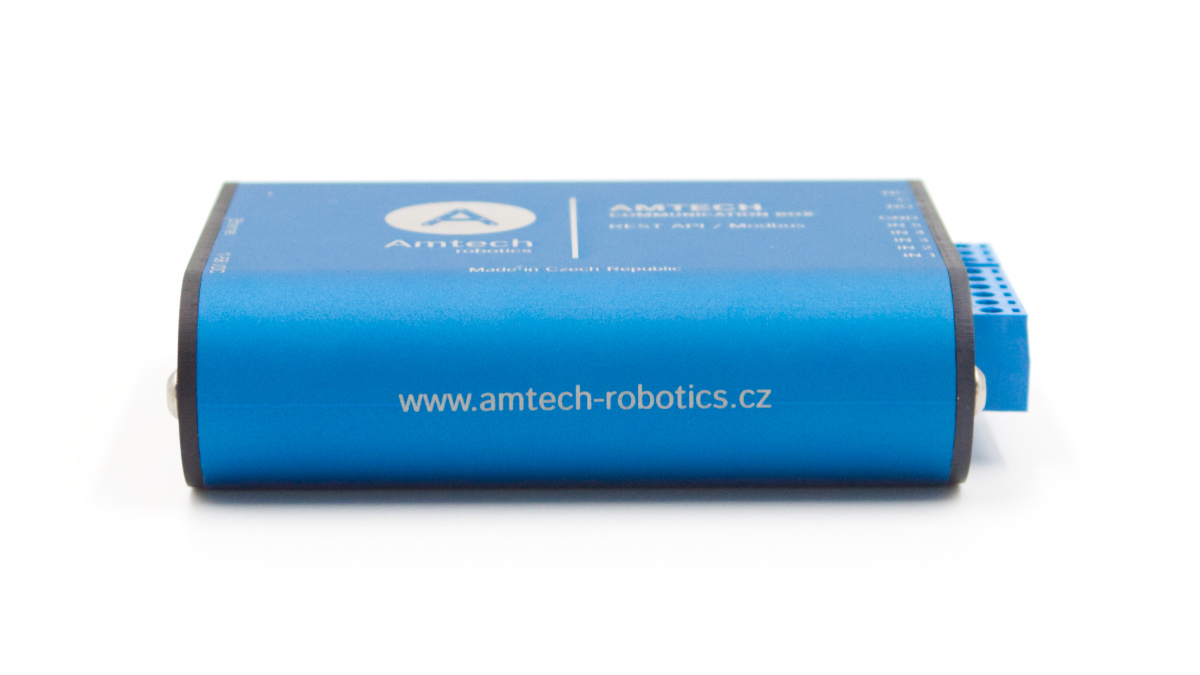

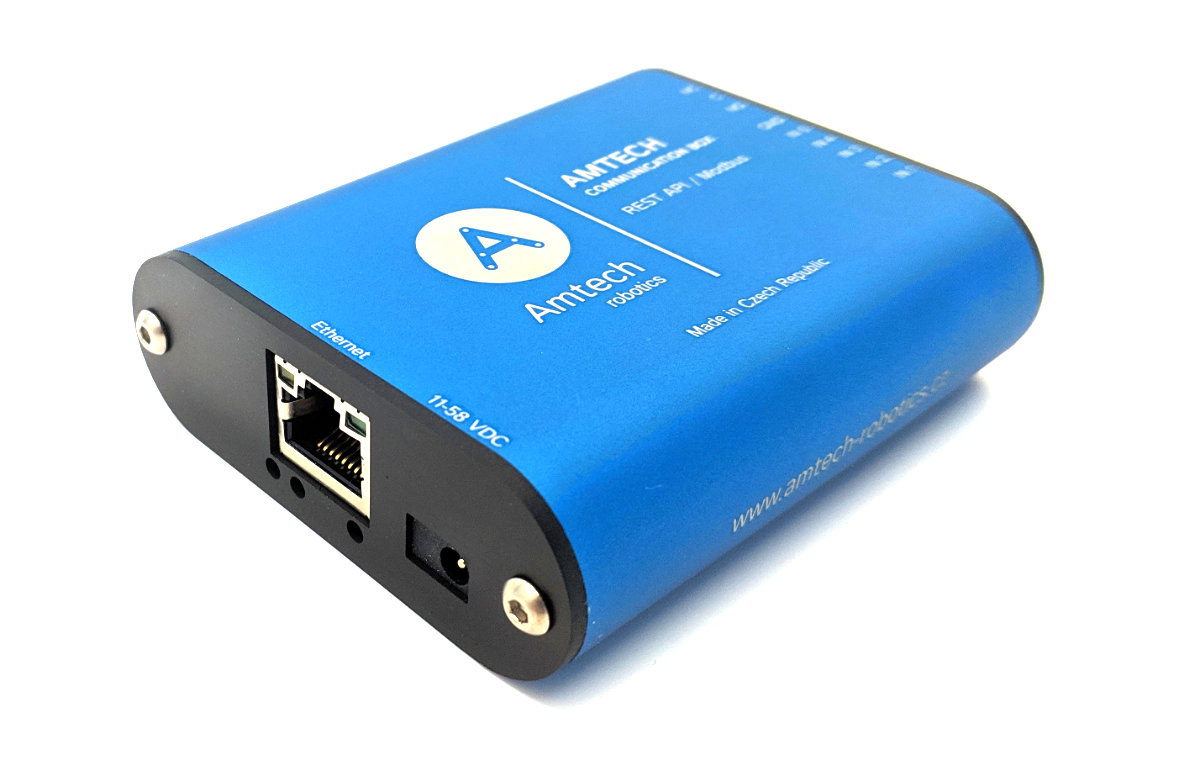

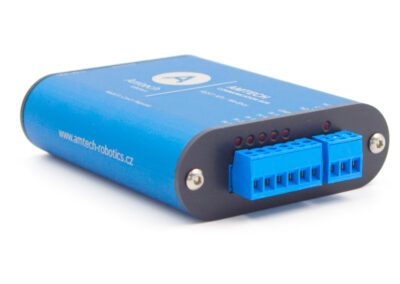

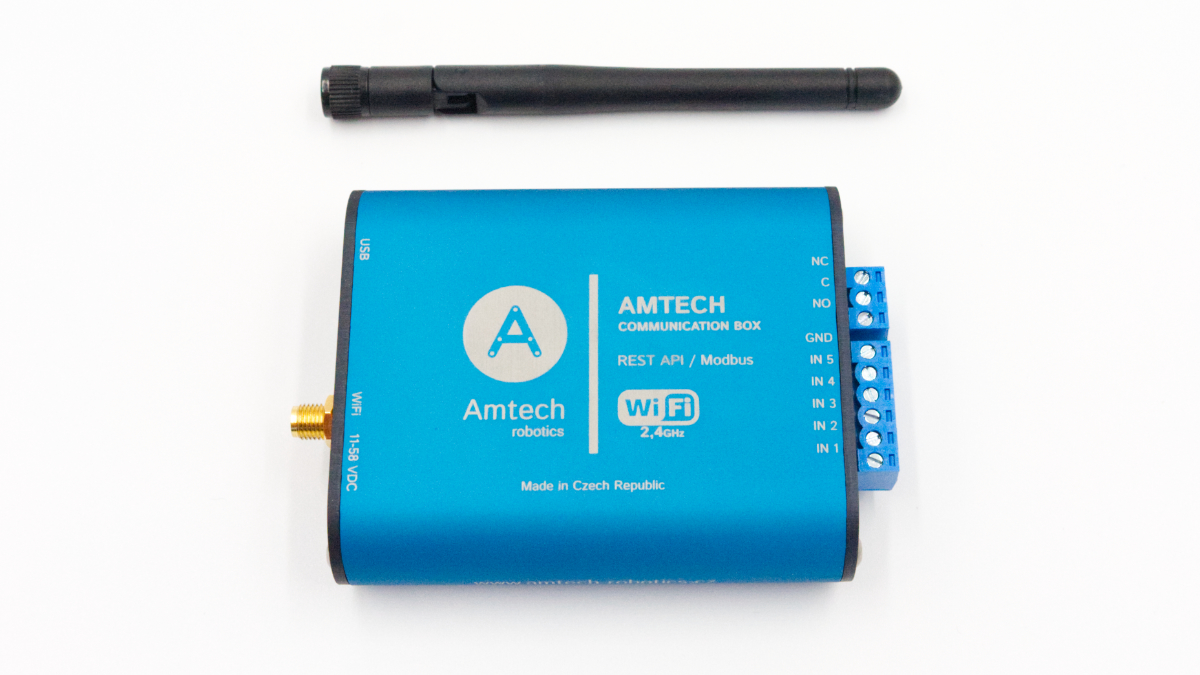

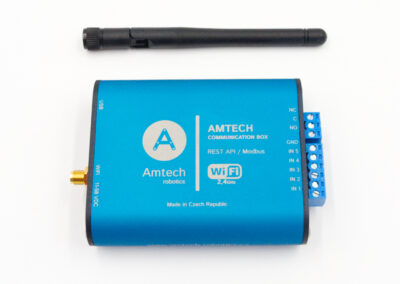

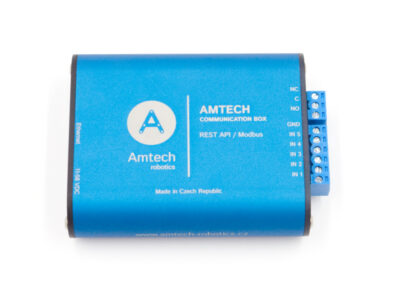

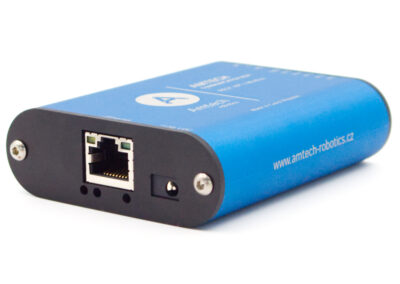

Gallery Amcombox WiFi and cable version
Remote communication
The Amtech communication box was primarily developed to communicate with MiR robots and the MiRFleet server.
The electrical signal applied to the device input is transformed into a software command and sent to a defined IP address (another device within the computer network – MiR robot, MiRFleet, etc.).
Primarily developed for communication with MiR robots and MiRFleet server.
Converts electrical signal to user-defined software communication REST API or Modbus TCP.
Five programmable inputs.
Possibility to define the command for logic 1 and 0 independently.
Ethernet or WiFi interface.
Power supply 11-58 VDC.
PoE (Power over Ethernet).
Internal memory and real-time clock backup.
Robust metal box.
WEB interface – simple and quick configuration.
application examples
We developed the AMTECH Communication Box mainly for the possibility of communication of MiR and MiRFleet with fire alarm units.
ORDER TODAY
EXTENSION OF COMMUNICATION
The AMTECH Communication Box expands the possibilities of communication with other devices.
SAfety
The main advantage is the connection with the fire protection system.
TEchnical support
Technical support. Please let us know if you have any question. We will advise you.
